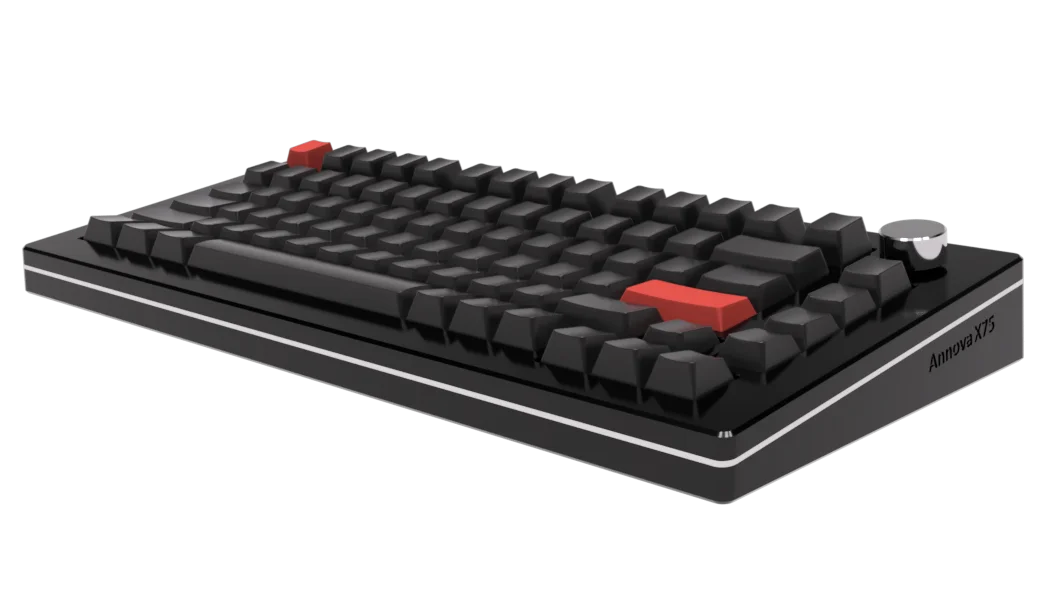

Annova X75
A Custom Made 75% Mechanical Keyboard From Scratch
Highlights
75% Exploded Layout
The most compact layout, providing a perfect balance between functionality and space-saving design.
Cherry MX Brown Switches
Experience the perfect blend of tactile feedback and quiet operation with Cherry MX Brown switches.
QMK + Via Firmware
Experience limitless control by remapping keys and creating macros on the fly with powerful QMK + Via support.
Hot-swappable Sockets
Customize your typing experience on the fly with hot-swappable sockets for easy switch replacement.
Minimalist Sleek Design
Designed to fit seamlessly into any workspace, combining aesthetics with functionality.
Customizable Knob
Enhance your productivity with a customizable knob that can be programmed for various functions.
Side mount USB-C Port
Conveniently located USB-C port for easy connectivity and cable management.
6° Typing Angle
Ergonomically designed with a 6° typing angle for comfortable and natural hand positioning.

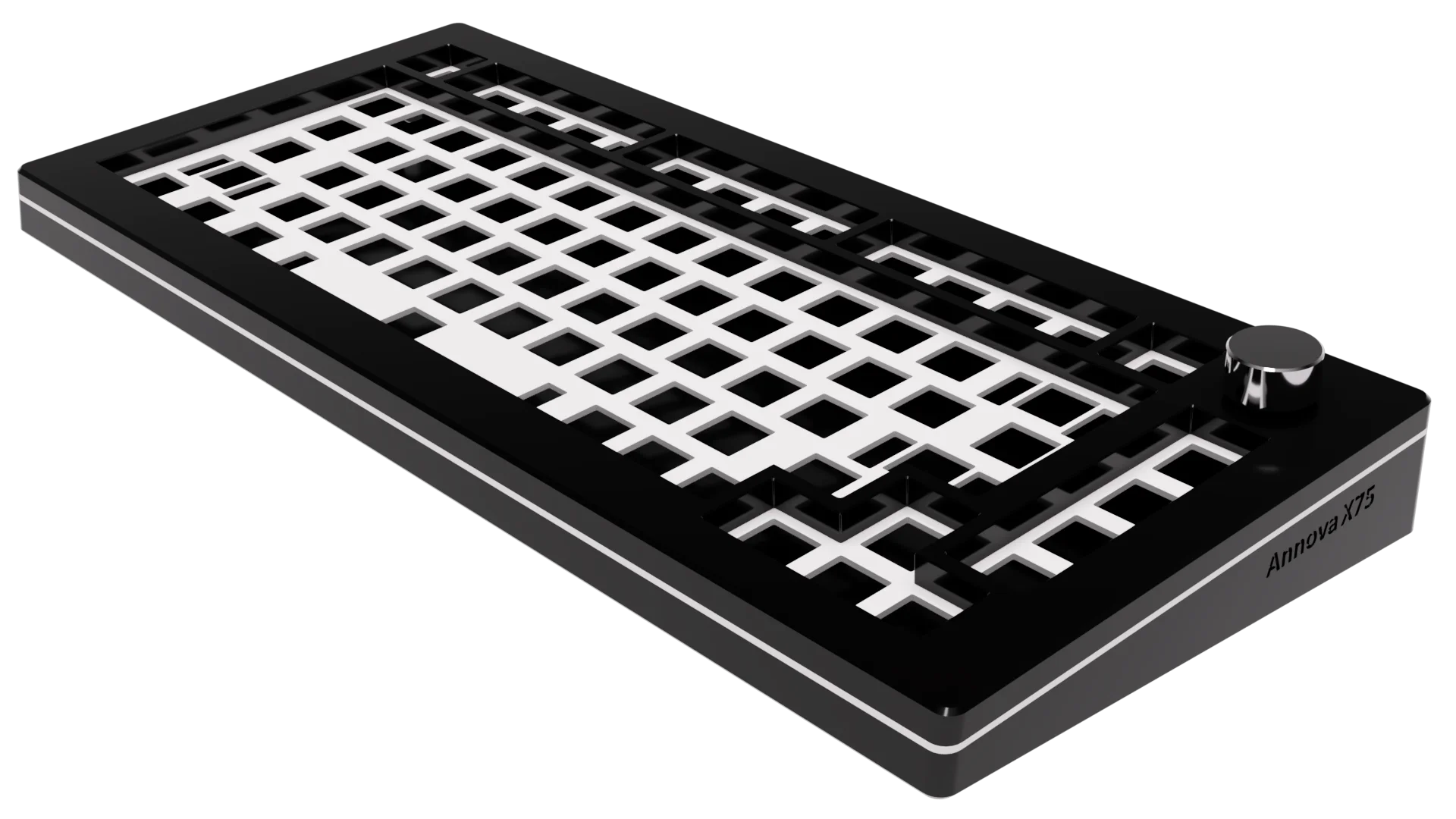

Sandwich Mount
Ensures a stable and responsive typing experience with a sandwich mount design.
Images
Bill of Materials
| Item | Quantity | Cost | Purchase Link |
|---|---|---|---|
| 1N4148 Diodes | 90 Pack | $1.57 | 1N4148 Diodes |
| Cherry MX Brown Switches | 90 Pack | $35.14 | Cherry MX Brown Switches |
| EC11 Rotary Encoder | 1 | $0.43 | EC11 Rotary Encoder |
| Orpheus Pico | 1 | - | Orpheus Pico |
| Kailh MX Hotswap Socket v1 | 90 Pack | $11.54 | Kailh MX Hotswap Socket v1 |
| Durock v2 Stabilizers Set | 1 | $18.59 | Durock v2 Stabilizers Set |
| Keycap Set | 1 | ~$30 | Keycap Set |
| Socket Head M3x12 Screws | 3 | $0.117 | Socket Head M3x12 Screws |
| Socket Head M3x25 Screws | 3 | $0.138 | Socket Head M3x25 Screws |
| M3 X 4mm Brass Threaded Inserts | 6 | $0.15 | M3 X 4mm Brass Threaded Inserts |
| Bottom Rubber Feets | 4 | $2.21 | Bottom Rubber Feet |

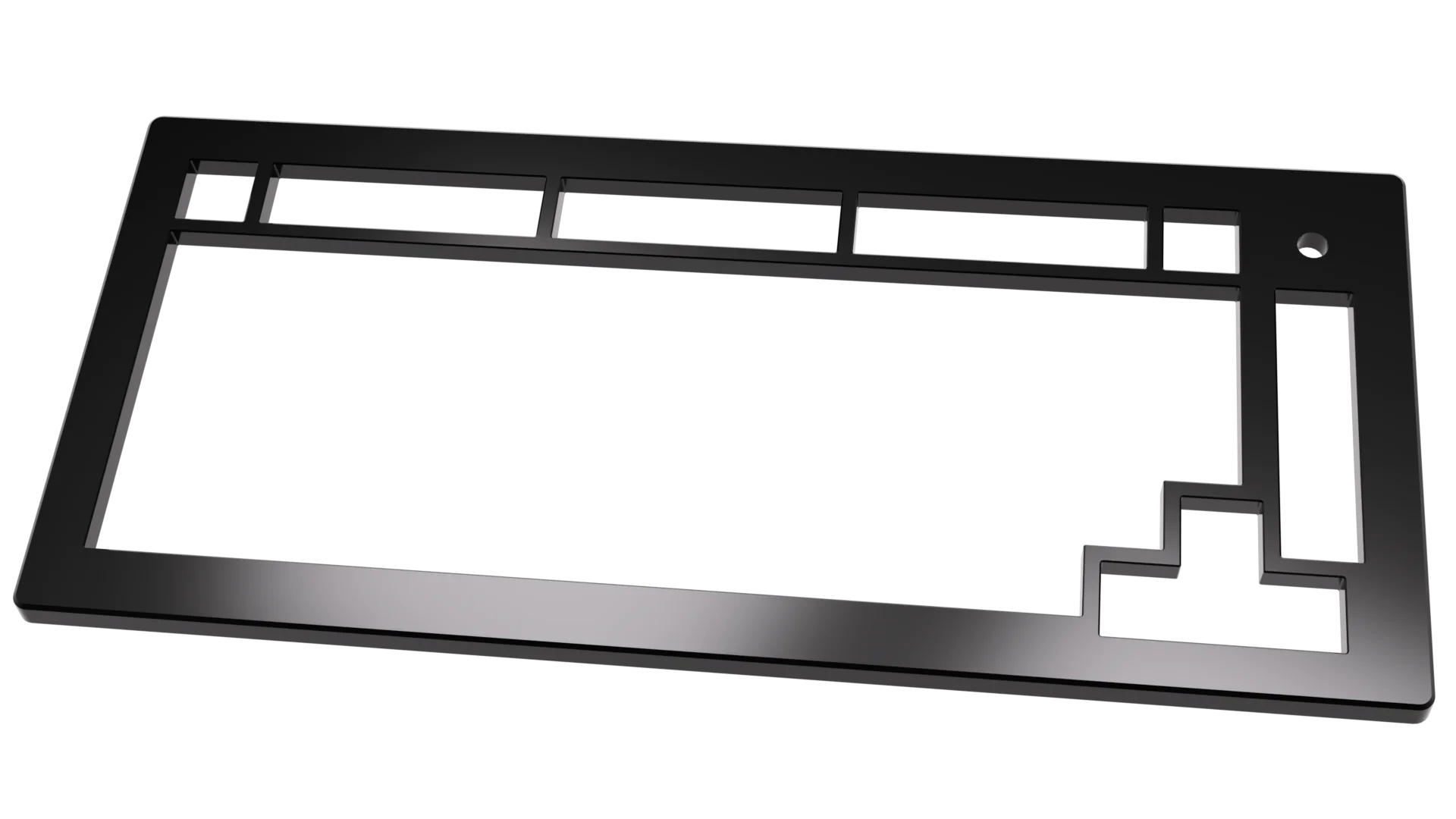

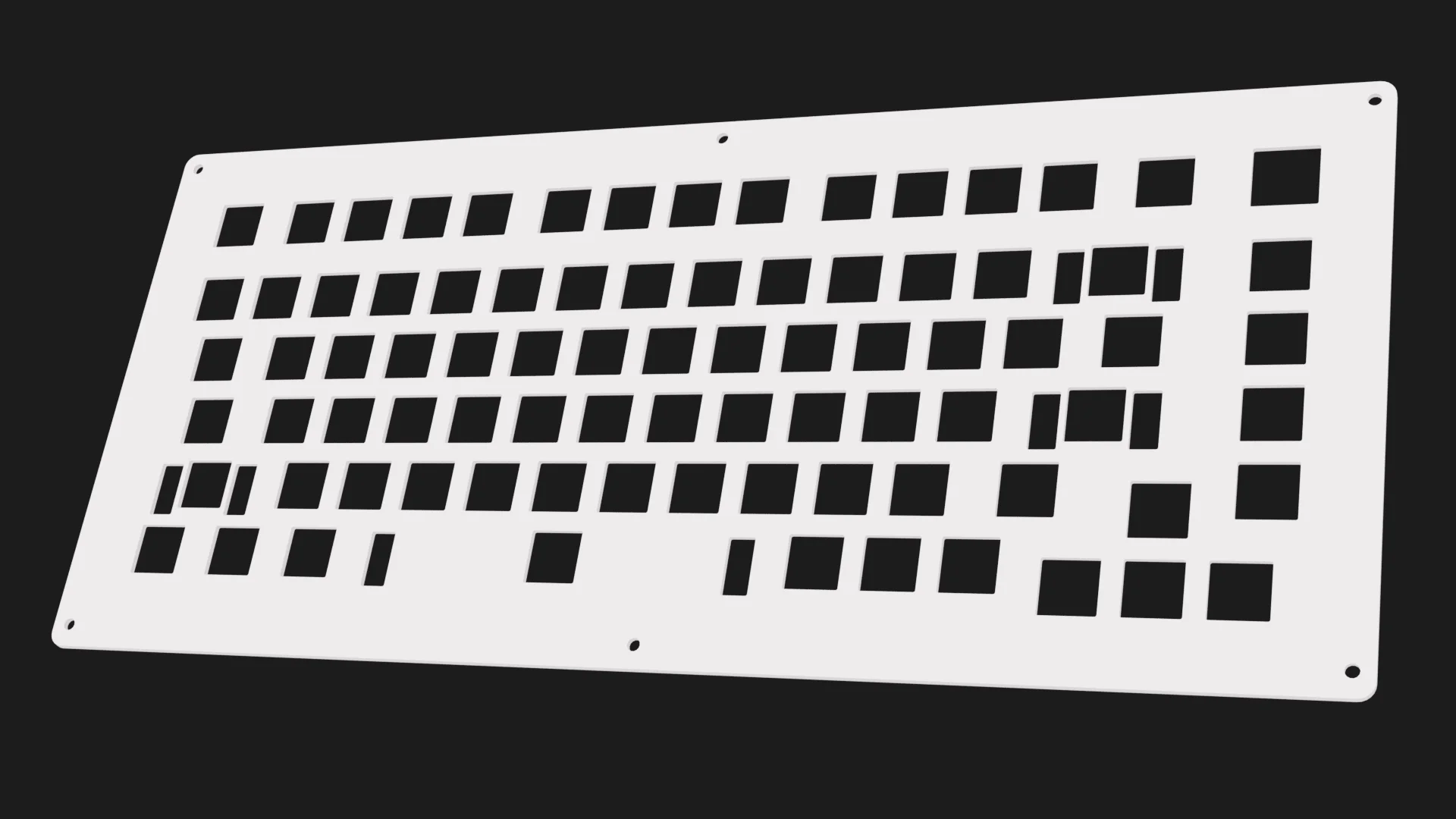

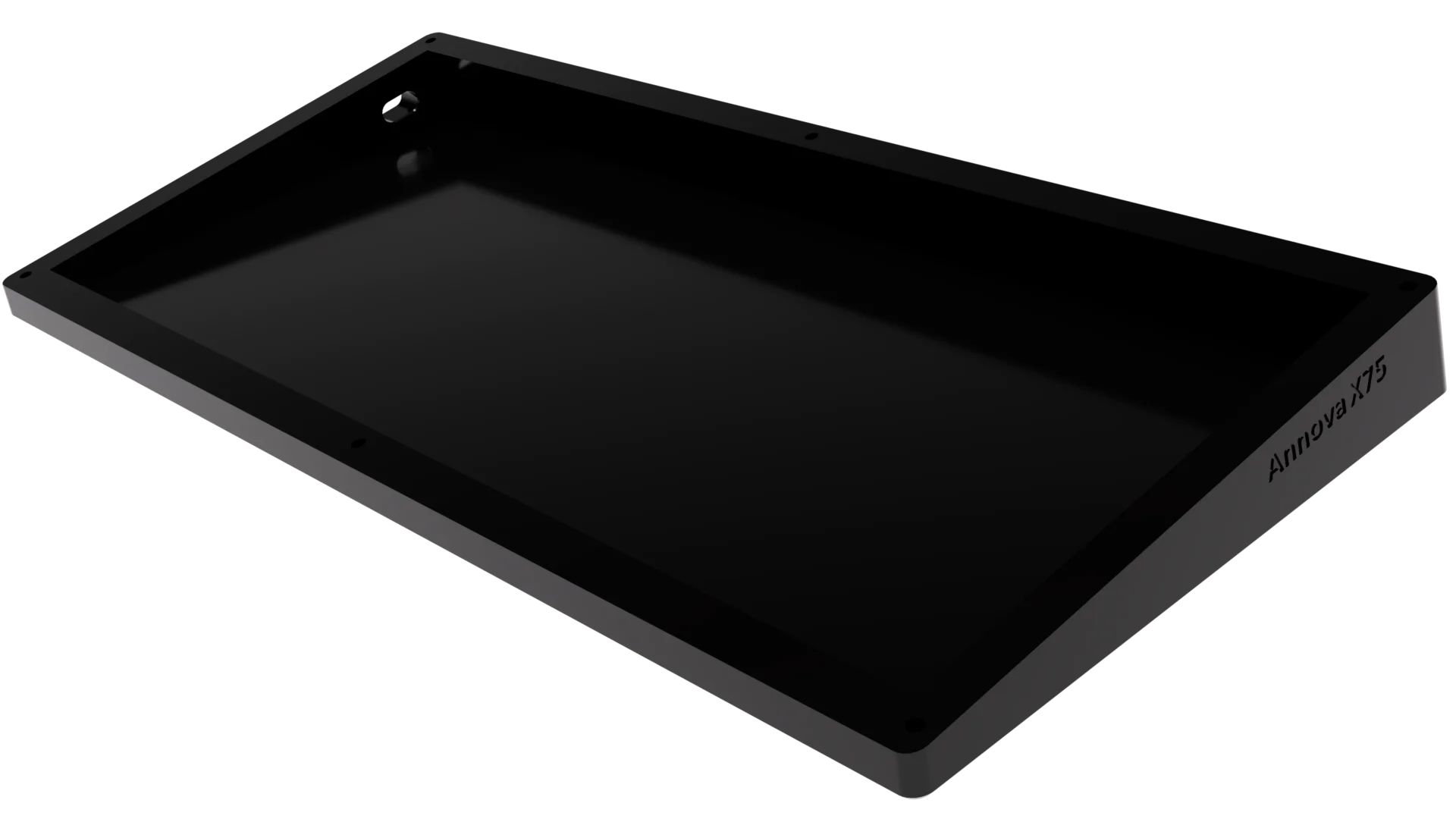

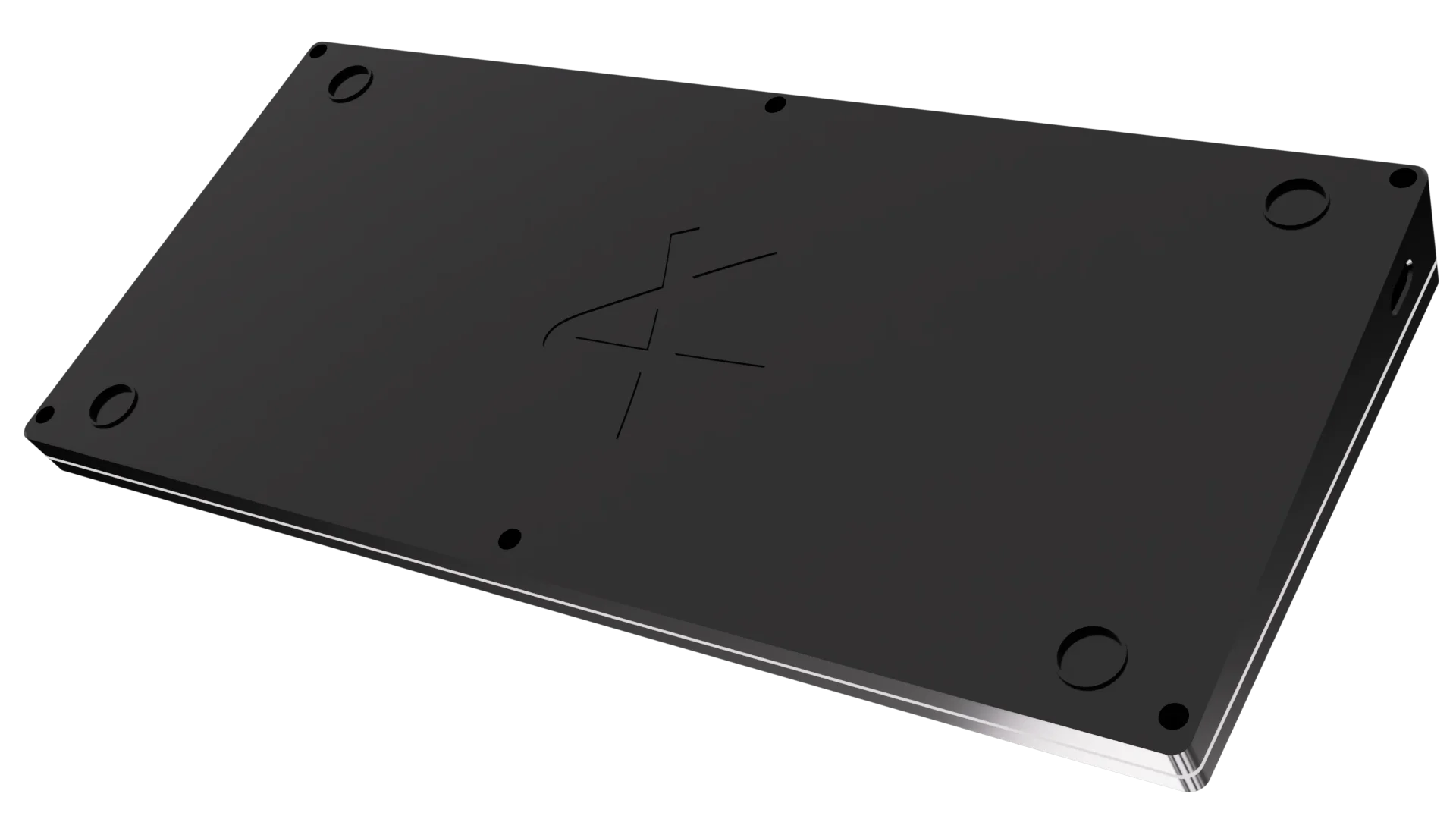

| Bottom Case, Top Case, Plate, Knob | 1 | - | 3D Printed |

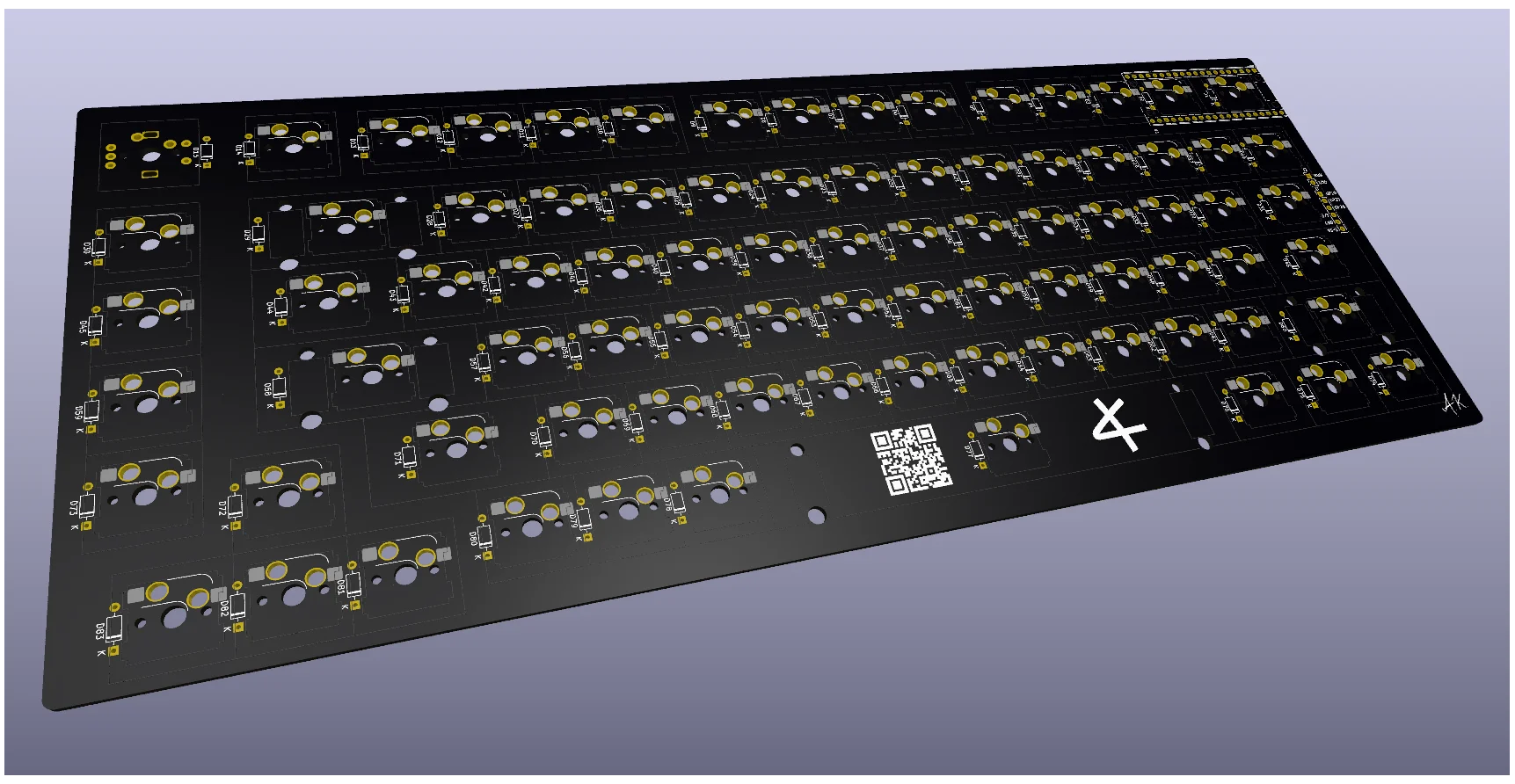

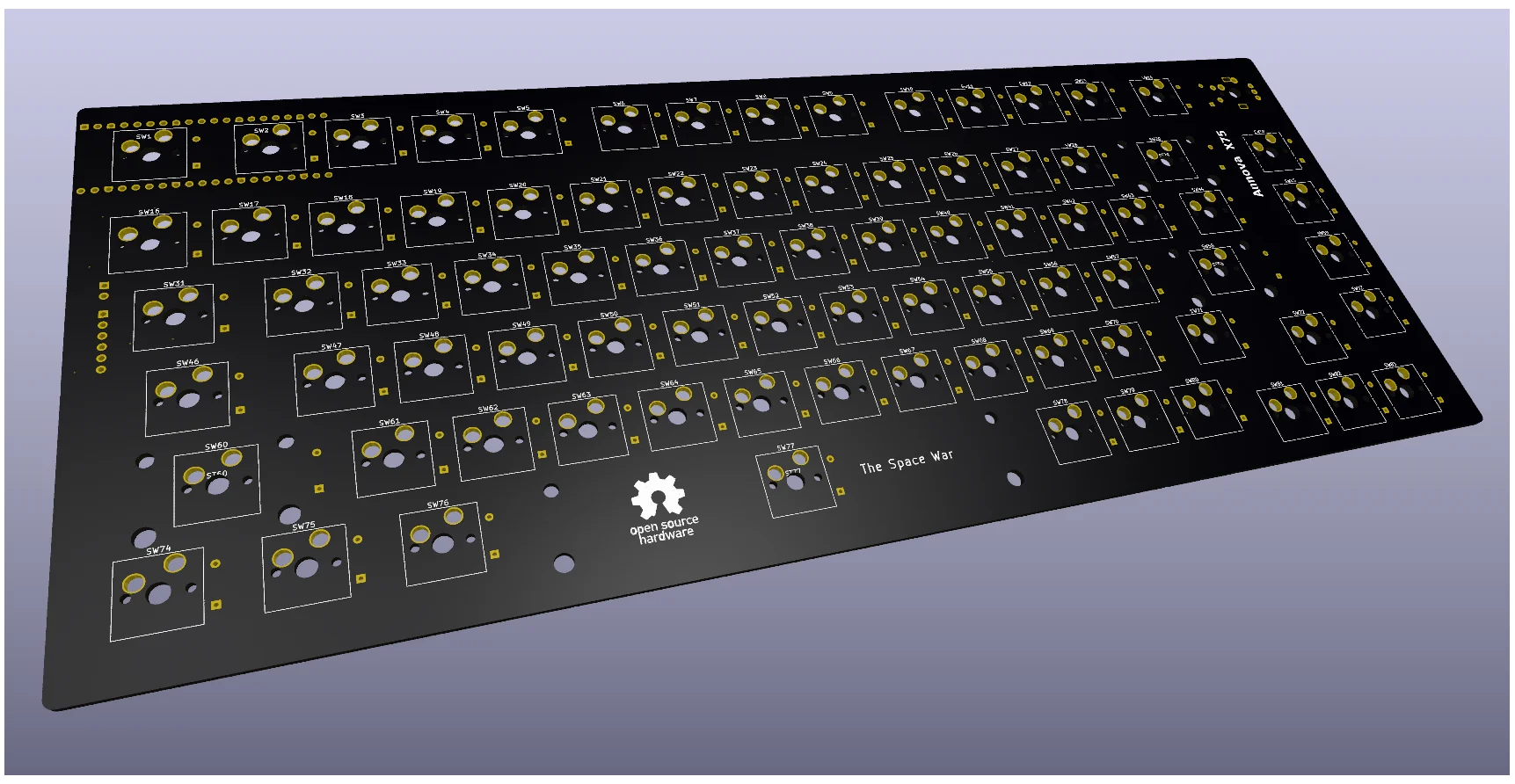

| PCB | 1 | $22.10 | JLCPCB |
